WEG Force Vent Fan W22 063-2 RBK

Forced Ventilation Fan 063-2 RBK to fit WEG W22 electric motors with an internal diameter of 124mm.

Our Price: £212.11

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part Number FV WEG 063 0K 124 179
IP Rating IP66
Airflow @ 50 Hz 60 m3/hour
Fan Speed 2930 rpm
Noise Level 61 dB
Single Phase Connection Yes, with capacitor
Three Phase Connection Yes
Fan Power @ 50 Hz 123 watts
Amps @ 230V Single Phase 50 Hz  0.63
Amps @ 230V Three Phase 50 Hz 0.66
Amps @ 400V Three Phase 50 Hz 0.39
To Fit Motor WEG
Series W22
Frame Size 63

Please download the pdf document(s) for full technical information.

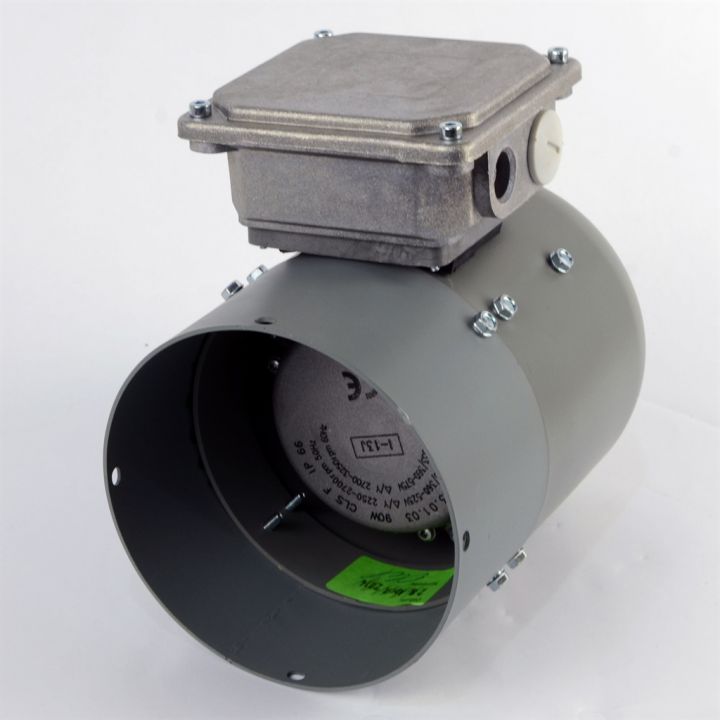

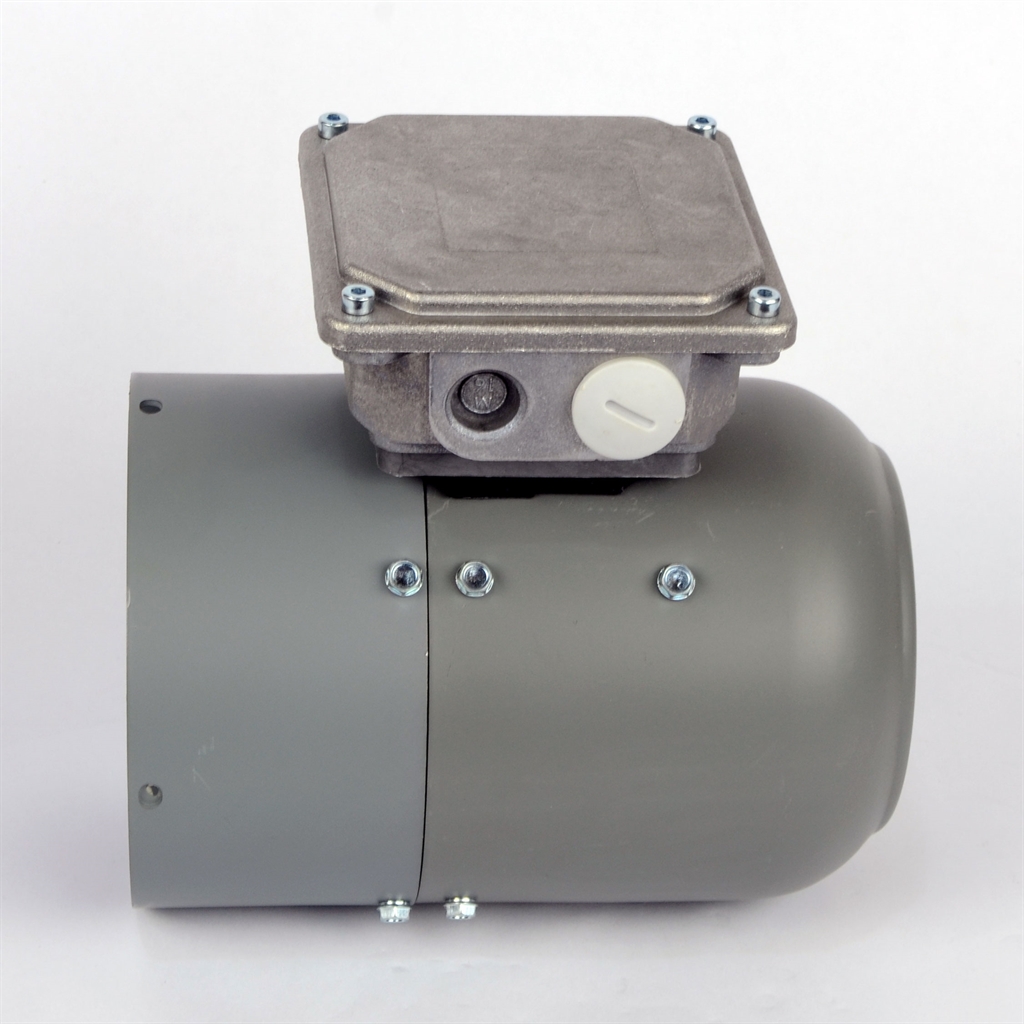

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.
