Economy Force Vent Fan FBI 090/2 S Extended

Economy Forced Ventilation Fan with extended cowl FBI 090/2 S to fit electric motors with an internal diameter of 174mm.

List Price: £159.00Our Price: £119.25

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP55 protection.

Item Number FFKMM 090 0S 174 240
IP Rating IP55
Airflow @ 50 Hz 123 m3/hour
Fan Speed 2662 rpm
Noise Level 58 dB
Single Phase Connection Yes
Three Phase Connection No
Fan Power @ 50 Hz 16 watts
Amps @ 230V Single Phase 50 Hz  0.12
Frame Size 90

Please download the pdf document(s) for full technical information.

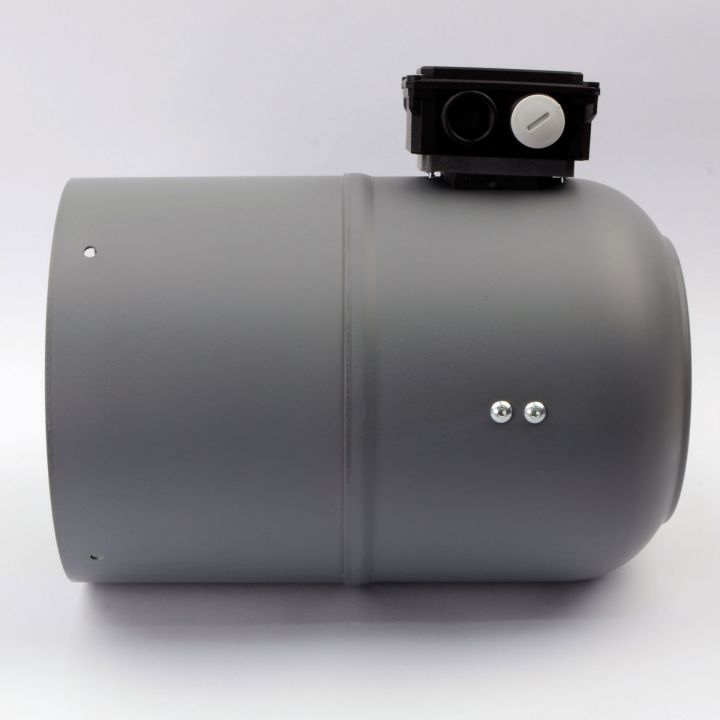

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.
