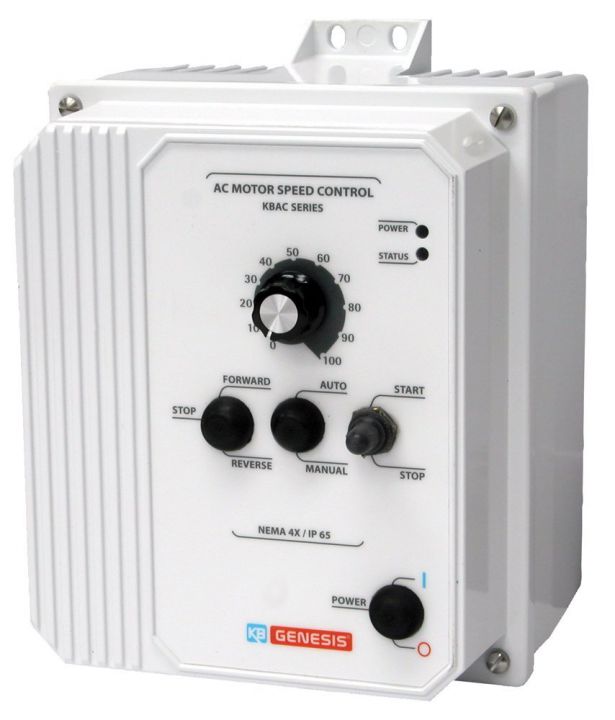

KBAC-45 White IP65 Inverter

KBAC-45 White Case IP65 Inverter 2.2 kW, 400V three phase input, 400V three phase output

List Price: £667.00Our Price: £413.00

Out of stock, please contact us for availability.

KBAC-45 White Case IP65 Inverter 2.2 kW, 400V

Manufacturer : KB Electronics
Model Number : KBAC-45
Part Number : 9531
Case Colour : White
Max Power Rating : 2.2 kW, jumper selectable to 1.5, 1.1, 0.75 or 0.55 kW
Input Voltage : 380-460V, 3 Phase
Dimensions : H.216 x W.181 x D.184 mm

The KBAC-45 Adjustable Frequency Drive is a variable speed control in a NEMA-4X /IP-65 washdown and watertight enclosure. It is designed to operate 380-460 Volt 3-phase AC induction motors through 4.6 Amps RMS. The sine wave coded Pulse Width Modulated (PWM) output operates at a frequency of 16kHz which provides high motor torque, high efficiency and low noise.

Due to its user friendly design, the KBAC-45 is easy to install and operate. Tailoring to specific applications is accomplished via selectable jumpers and trimpot adjustments, which eliminate the computer-like programming required on other drives. However, for most applications no adjustments are necessary.

Main features include adjustable RMS Current Limit with I2t Motor Overload Protection. In addition, adjustable Slip Compensation provides excellent load regulation over a wide speed range. Power Start TM delivers over 200% motor torque to ensure startup of high frictional loads. Electronic Inrush Current Limit (EICL TM) eliminates harmful AC line inrush current and adjustable Linear Acceleration and Deceleration make the drive suitable for soft-start applications. The Ride Through feature provides a smooth recovery to the previous set speed during a momentary power loss and Regeneration Protection eliminates tripping due to rapid deceleration of high inertial loads.

Standard front panel features include diagnostic LEDs for Power On and Control Status, a Start/Stop Switch and a Main Speed Potentiometer. Other features include a Barrier Terminal Block to facilitate wiring of the AC line and motor, adjustable trimpots (MAX, MIN, ACCEL, DECEL, COMP, CL, BOOST) and customer selectable jumpers (line voltage, motor horsepower, auto or manual restart modes, motor frequency, frequency multiplier, fixed or adjustable boost).

Optional accessories include a Forward-Stop-Reverse Switch, Auto/Manual Switch, Power On/Off Switch, Signal Isolator /Run Relay and a Multi Speed Board. Quick-connect terminals are provided for easy installation of all accessories.

This product may also be known as : KBAC, KBAC-45, KBAC45, KBAC-45, KB-9531, KB9531, IP65 Inverter.
