Teco Force Vent Fan TEC 132 RBK Ext

Forced Ventilation Fan 132 RBK extended to fit Teco electric motors with an internal diameter of 233mm.

Our Price: £283.23

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part Number FV TEC 132 0K 233 333
IP Rating IP66
Airflow @ 50 Hz 515 m3/hour
Fan Speed 2619 rpm
Noise Level 73 dB
Single Phase Connection Yes, with capacitor
Three Phase Connection Yes
Fan Power @ 50 Hz 202 watts
Amps @ 230V Single Phase 50 Hz  0.68
Amps @ 230V Three Phase 50 Hz 0.64
Amps @ 400V Three Phase 50 Hz 0.37
To Fit Motor Teco
Series Standard
Frame Size 132

Please download the pdf document(s) for full technical information.

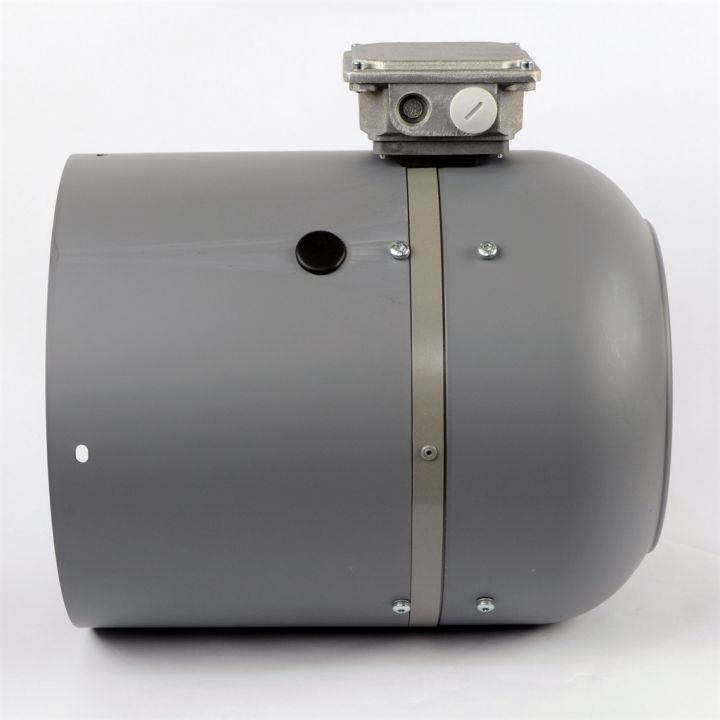

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.
