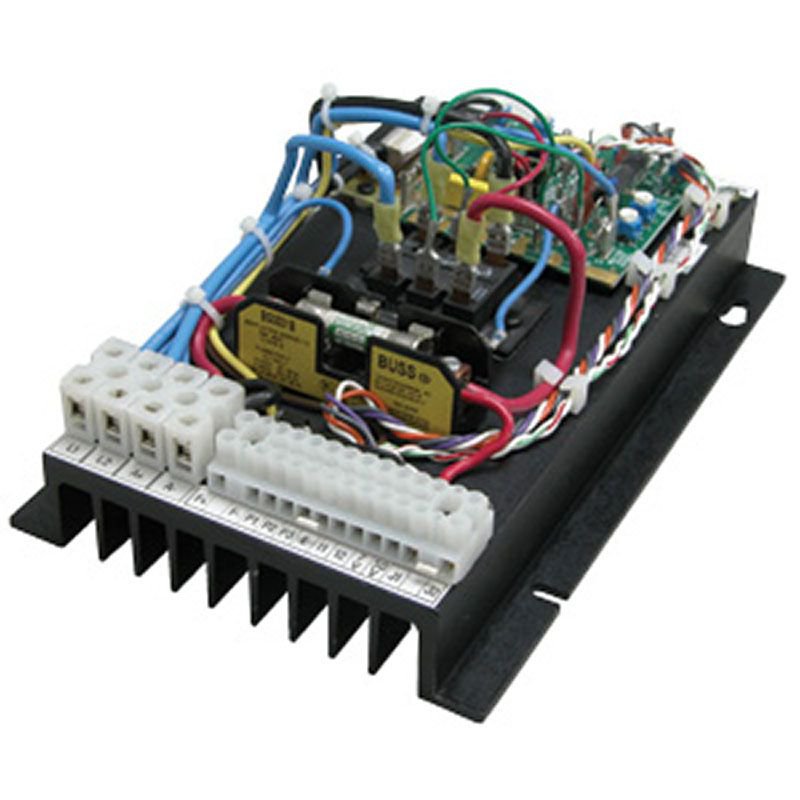

KBCC-255 DC Motor Speed Controller

KBCC-255 ( 9940 ) DC Motor Speed Controller 230V AC Input, 180V DC Output, 26 Amps

List Price: £400.00Our Price: £300.00

A separately ordered horsepower resistor must be fitted to this DC drive for it to operate. See the table below to select the correct resistor.

Manufacturer : KB Electronics
Model Number : KBBC-255
Part Number : 9940
AC Input Voltage : 230V AC
Max DC Output : 180V DC
Max Power @ 180V : 5 horsepower (3.75 kW) 26 Amps

This product may also be known as : DC drive, DC variable speed drive, DC motor drive, DC motor speed controller, DC drives, DC variable speed drives, DC motor drives, DC motor speed controllers. kb9940, kb-9940, kbcc255

PLUG-IN HORSEPOWER RESISTOR® CHART

Motor Horsepower Range** Plug-in-Horsepower
Resistor®
Armature Voltage
90-130 VDC
Armature Voltage
180 VDC
Resistance Value
(ohms)

1/100 - 1/50 1/50 - 1/25 1.0 Info/buy
1/50 -1/30 1/25 - 1/15 .51 Info/buy
1/30 - 1/20 1/15 - 1/10 .35 Info/buy
1/20 - 1/12 1/10 - 1/6 .25 Info/buy
1/12 - 1/8 1/6 - 1/4 .18 Info/buy
1/8 - 1/5 1/4 - 1/3 .1 Info/buy
1/4 1/2 .05 Info/buy
1/3 3/4 .035 Info/buy
1/2 1 .025 Info/buy
3/4* 11⁄2* .015 Info/buy
1* 2* .01 Info/buy
11⁄2* 3* .006 Info/buy
* Use with Auxiliary Heatsink.
** For overlapping motor horsepower range use lower value
Plug-in Horsepower Resistor®.
